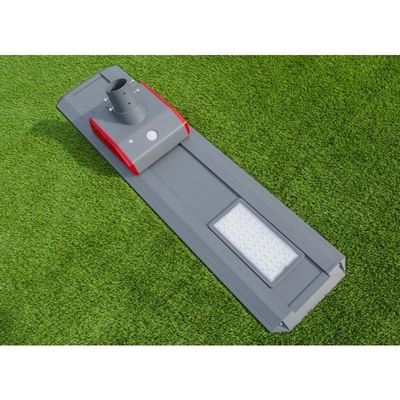

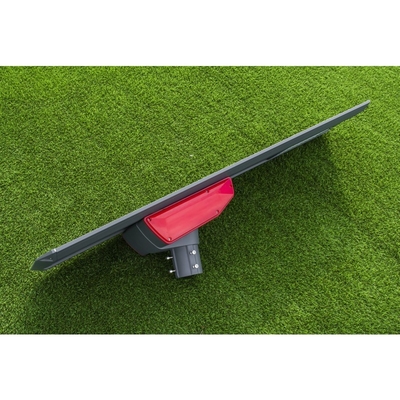

Aluminum Housing Integrated Solar Street Light IP65 50W With Mobile Phone APP Control

Modern Design Aluminum Housing IP65 Solar Led Street Lights 50 Watt With Mobile Phone APP control

This new model is based on the classic semi-integrated solar powered let street light, the power have 30w, 40w, 50w and 60w, this new product is a creative light fixture wuith featues of elegant exterior design, die-casting aluminum housing and customized solar panel and functions of time control, light control, human infrared sensing and bluetooth APP control. The direction-adjustable solar panel maximizes the solar cell charging efficiency.

Also it can be matched with AC adaptor and used as a led street light supplied by commercial electricity with its special controller. And with 5050 led bead, higehr brightness, and less energy consumption.

Features:

1.Material:Aluminum + Tempered Glass
2.LED Source: 160LM for one piece
3.Installation Height: 7-8m
4.Working Time: 12hrs per day, 5-7 rainy days backup
5.Charging Time: 6 hours under strong sunlight
6.Certification: CE/RoHS/IP65 7.Functions: Human Body Infrared Sensor Control,time control,light control, mobilephone APP control 8.Main features: Die-casting aluminum housing, anti-rust and anti-corrosion, 360 degree rotatable solar panel, easier installation, mobilephone APP remote control.
9.Pole Distance:30m for one-side road, 50m for two-side road

Packing Details:
1.Product Size:1250*360*270mm
2.Packing Size:1330*435*400MM (2piece/carton)


The Solar Street light consists of the following-RYGH Tech

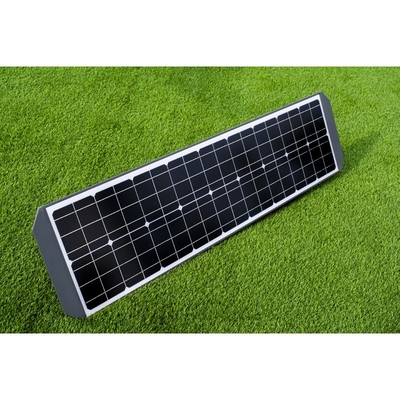

• Solar Panels: Solar panel is known as Photovoltaic cell which uses light energy from the Sun to convert solar energy into electricity. This electricity can be used to run many applications.

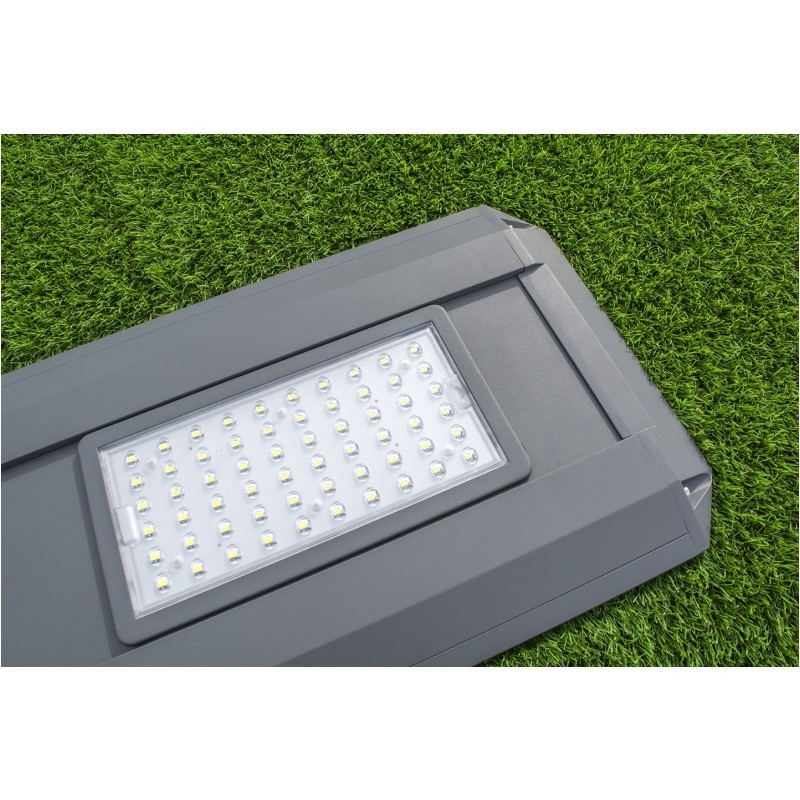

• LED light: LED light which is used in solar led street lights/Solar Parking Lot Lights/Outdoor Parking Lot Lights/etc, emits brighter light with low energy consumption. A single LED will emit less light than compact fluorescent or incandescent. But a set of LEDs give brighter light than other lamps.
• Rechargeable battery: These batteries are used for storing electricity received by the solar panel during daytime, and it provides electricity at night.
• Controller: Controller is used to control when to switch on and switch off the LED street light. It also controls battery from undercharging and overcharging. It consists of MCU, secondary power supply and battery charger, etc.
• Pole: For every led street lamp, 12 Feet pole is required so that some components like batteries, fixtures, and panels can be mounted.
• Interconnecting cables: Battery box, LED light, and the solar panel are mounted on the top of pole and they are connected through interconnected cables. A PV module is connected with a controller and it is connected with battery and LED lamps. Size of the cable depends on current, how much it is used and the pole size.

Data sheet:

Application:

Production proccess:
