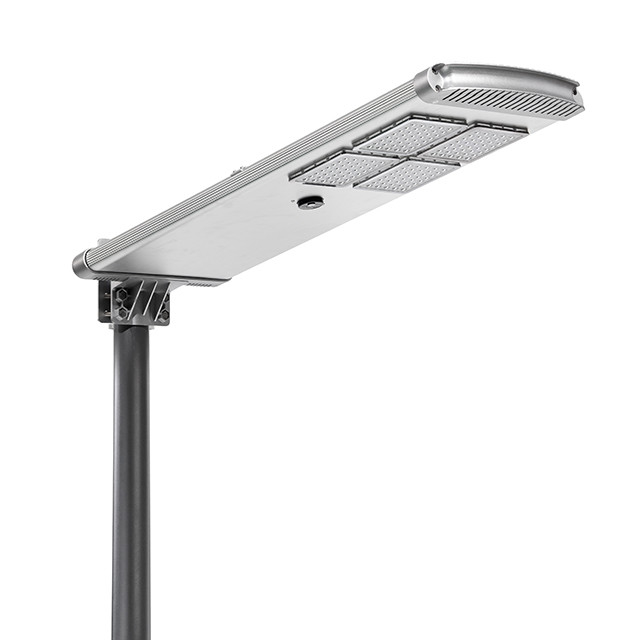

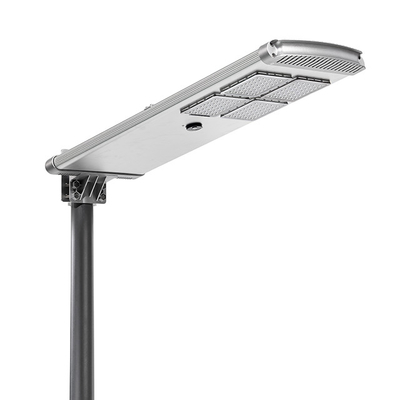

High Quality Waterproof all in one integrated solar panel 50w 60w led street light price with with LiFePO4 battery
Product description:
Our integrated solar street light which integrates the green-energy parts Solar panel, LED
lamp and the Lithium battery into a single product, with intelligence induction system to gain
the solution of low-energy, long-time, high-luminance and free maintenance. At the same time,
it’s convenient in the shipment and installation.
PAD series put high efficiency mono solar panel,intelligent MPPT charge controller,deep cycle long life LifePO4 battery,high
lumen led bridgelux 3030 led chip all in one box,easy to install and transportation
This solar led street light with Aluminum + Steel glass materials. The solar led street light working time can be 12 Cloudy/Rainy days.
But the charging time for the solar led street lighting only need 6 hours under strong sunlight is okay.
We use Bridgelux LED of this solar led street light and the lumen can arrives 170LM/W.
The mainly Functions of this PAD series solar led street lighting is Human Body Infrared Sensor Control,time control,light control, smart remote control.
|
Datasheet:
| Model NO.RYGH-PD-50W |
| Wattage |
50W |
| Solar Panel |
18V 70W Imported High Efficiency Monocrystalline Silicon |
| Certificate |
CE ROHS IP65 |
| Light |
8500LM |
| LED |
Bridgelux chips3030 (Life time 100000hours) |
| Battery |
400WH 12.8V LifePO4 Battery |
| Mounting height(m) |
7~9m (Suggest install between space20-30m) |
| CRI |
>70 |
| IP Rate |
IP65 |
| Charge Time |
6 hours by bright sunlight |
| Cloudy/Rainy days |
12 Cloudy/Rainy days |
| Material |
High Class Aluminum(anodic oxidation treatment) |
| Product Size |
1190*385*180mm |
| Color Temperature |
6000-6500K |
| LED Lamp |
160PCS |
| Conversion Efficiency |
>=0.95 |
| Operating Temp |
-25-605ºC |
| Warranty |
3 years |
| Motion sensor |
Yes(Microwave Sensor) |
| Remote Control |
Yes(1pc remote control per lot) |
| Packing Size |
1270*455*210MM |
Features:
1.Put solar panel,led chip,charge controller and battery are in one box,professional industrial design team design.
2.Use High end die-cast aluminum forming,with high-end, atmosphere, andic oxidation treatment design appearance,Impact and
high temperature resistance,excellent corrosion resistance.
3.With Intelligent power regulation, automatic judgment of weather, reasonable planning of discharge discipline.
4.With intelligent remote control,UVA technology,long distance remote control,Wearable obstacle,have 4 modes lighting mode
for choose,adjust brightness function and so on.
5.With intelligent discharge management,Charge and discharge soft and hard dual protection and intelligent equalization
technology,deep cycle more than 2000times.
6.For total lamp can reach 170LM/W,More than twice the average brightness of ordinary LED sources,view angle is 140 degree,
lighting more area.
7.With IP65 waterproof IP grade,can work in water in a short time.
8.Very easy disassemble,install and transportation.
|
Data sheet:
User-friendly design, easy to assemble and disassemble:
PAD series is integrated design,lamp body without glue.Compared with any other design light which Non-removable
replacement product,PAD design all in one solar lights each parts very easy to maintain and replacement.cut cost also.All
the connector have label,all cables use waterproof male and female plug connectors,avoid connect wrong.Styling
design,Reflect the rigorous and humane custom spirit of lamps
Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or parking area or
provide the light in roads where it’s necessary, the battery provide the energy for lighting, and
the solar panel charge for the battery
Working characters:
The solar panel converts sunlight into electricity and stored in lithium battery via controller, the LED light will
work at night automatically by light sensor control, and provide lighting for the darkness area, the intelligence
induction system can save the energy when the high-brightness lighting is not necessary
Production proccess:
Package:
Attention:
1. Please Charge All Model of light (without discharge at night) for 3 days before installing;
2. Please remove the plastic isolation film on the transparent lampshade if any before using;
3. Keep the device away from fire, water and moist places in order to avoid explosion,
leakage, moisture;
4. Any severe shock or smash to the light is not recommended;
5. No one expect professional technician should attempt to disassemble to the light in order
to avoid damaging the light
