Waterproof IP65 AC85-265V SMD Led Street Light 100W Streetlight Road Lamp Outdoor Lighting
The power of this Street Led Lamp is 40w 50w 60w 80w 100w. The lumen of the Led Street Lamp is 100lm/w-130lm/w optional.
The light source uses China 3030, high quality and long lifetime.
We also made several drivers for choose: China, DONE, Sosen optional
We provide 2-3 years warranty for this SMD led street light.
Newest design!!! Meet your difference requirements!
We believe the model is a good choose for you if you are looking for led street light.
What is LED street light?
LED street light refers to the street lamp made with LED lamps. It has the unique advantages of high efficiency, safety,
energy saving, environmental protection, long life, fast response and high color rendering index. It is of great significance
for urban lighting energy saving.
Model NO. AD-LD-100WCS
| Wattage |
100W |
| Voltage |
AC 85-265V |
| Size |
453*276*78mm |
| Material |
Die-casted Aluminium + PC Lens |
| Beam angle |
X: 130° Y: 70° beam angle |
| Efficiency (LM/W) |
100lm/w and 130lm/w optional |
| Luminous flux |
10000LM |
| Pole size |
Φ60MM |
| Power Factor |
>0.9 |
| Life Time |
30000 Hours |
| Chip Brand |
China 3030 LED |
| LED Qty |
108pcs |
| Driver |
China/DONE/Sosen Driver optional |
| Overload protection |
4-10KVA |
| CRI |
>70 |
| CCT |
2800-3200K / 4000-4500K / 5000-5500K / 6000-6500K optional |
| Operating Temp |
-40 - 65 degree celsius |
| Storage Temp |
-40 -85 degree celsius, 10% - 95% RH |
| Warranty |
2-3 Years optional |
Led street light features
LED street light is an important part of city lighting, traditional street lamps used high-pressure sodium lamp, the overall light low pressure sodium lamp caused a huge waste of energy, therefore, the development of efficient, energy saving, long life, high color rendering index, environmental protection is very important for city street lamp lighting energy-saving significance.
High power LED street light and high pressure sodium lamp is different from conventional light source, high power LED street light with low voltage DC power supply, by the synthesis of GaN based blue LED and yellow fluorescent powder, white LED, with high efficiency, safety, energy saving, environmental protection, long life, fast response speed, high color rendering index unique advantages and can be widely used in city road lighting.
Light emitting diodes (LightEmittingDiode, abbreviated as LED) is a semiconductor pn junction formed with weak electricity can light high efficiency solid-state light source based on the forward bias voltage and the injected current, injected into the P region of the hole and injected into the N region electron in diffusion into the active region after radiation and emit a photon, electric can be directly converted into light energy.

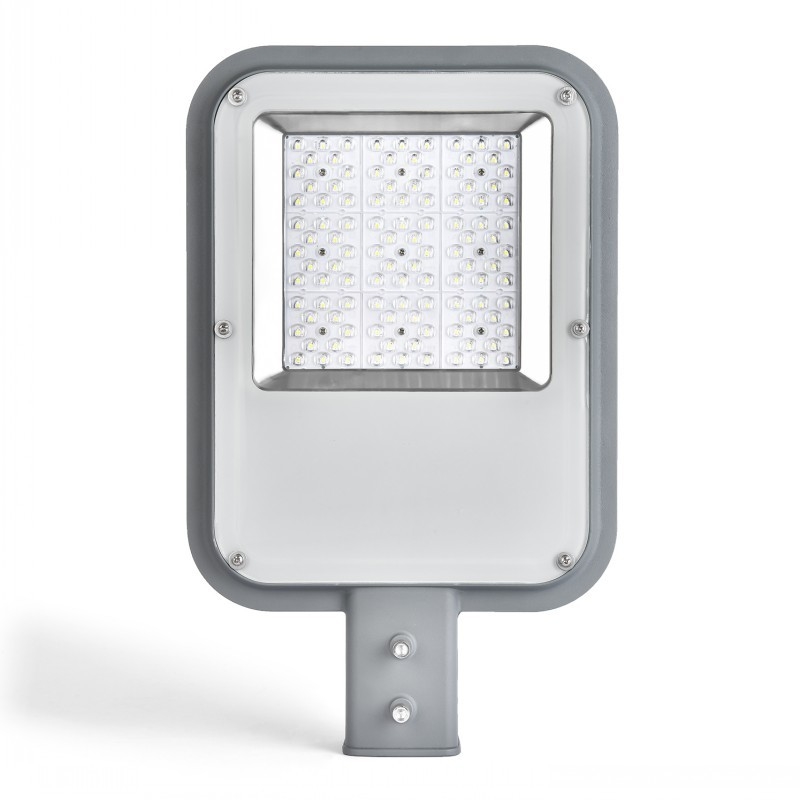

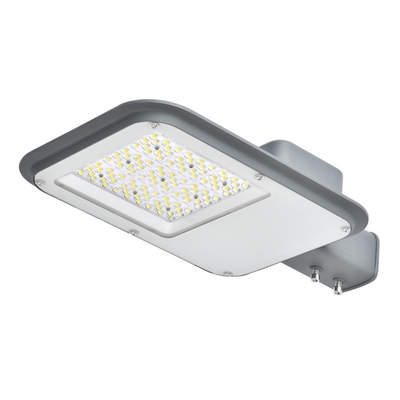

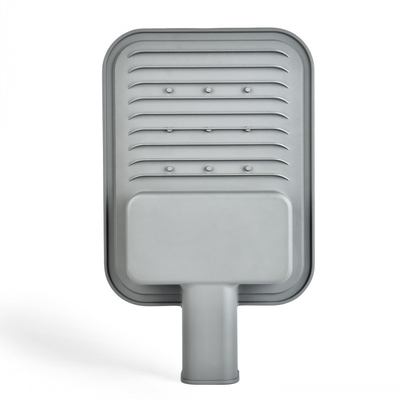

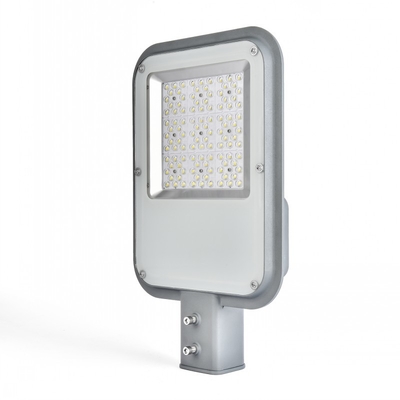

Product Details Picture:
